DNK heating element with regulation TRG 31 - 6000 W (3x400)

DNK heating element with regulation TRG 31 - 6000 W (3x400)

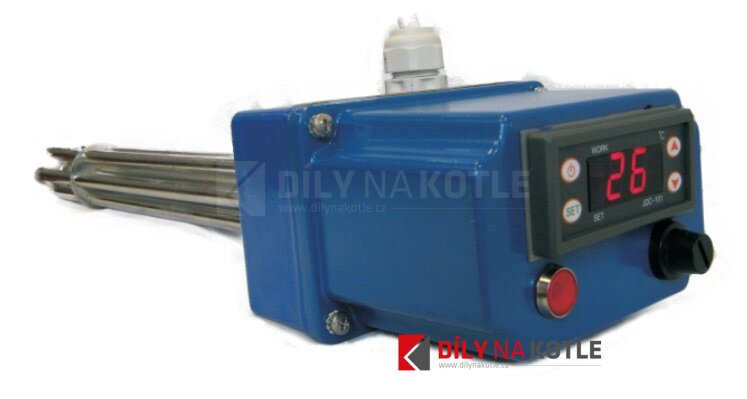

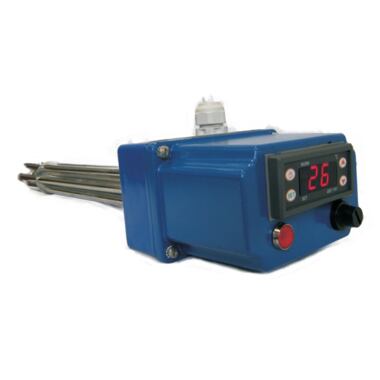

the open body consists of two parts: the heating part is composed of three U-shaped heating branches (from the listed materials) attached to the head with M48x2 or G1 thread. The terminal box is made of cast aluminum with IP 54. It includes a regulating digital thermostat in the specified temperature range and a thermal fuse to protect against overheating of the heating element, a glow plug indicating the status (heats/does not heat). Electrical supply is possible from both sides via the OBO-VTEC bushing.

The heating element is intended for direct heating of any liquid (it is necessary to adapt the material of the element). During operation, the body must be constantly immersed up to the head in the liquid. Suitable for use where immediate liquid temperature control is required.

Fields of application

• food industry
• engineering
• energy
• heating industry
• hydraulic industry

Description

• heating element with built-in digital regulation including thermal fuse
• connection material: steel, brass, stainless steel 17 248/1.4541
• rod material: steel, brass, stainless steel 17 248/1.4541, Incoloy 800

Technical parameters

• power: 6000 W
• regulation range/T fuse: 0-90°C/110°C
• switching difference: 1-16°C
• thermostat delay: 0-9 min
• thread: 6/4"
• power supply: 400 V
• protection: IP 54
