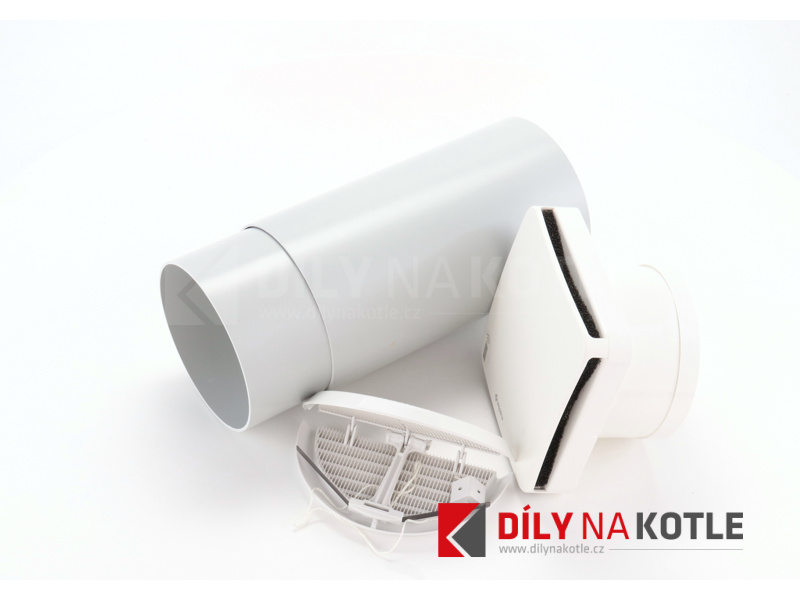

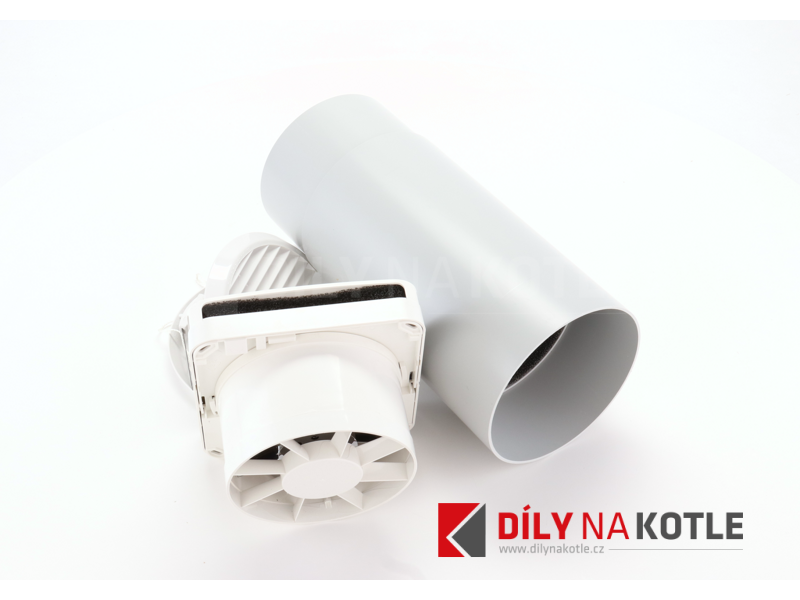

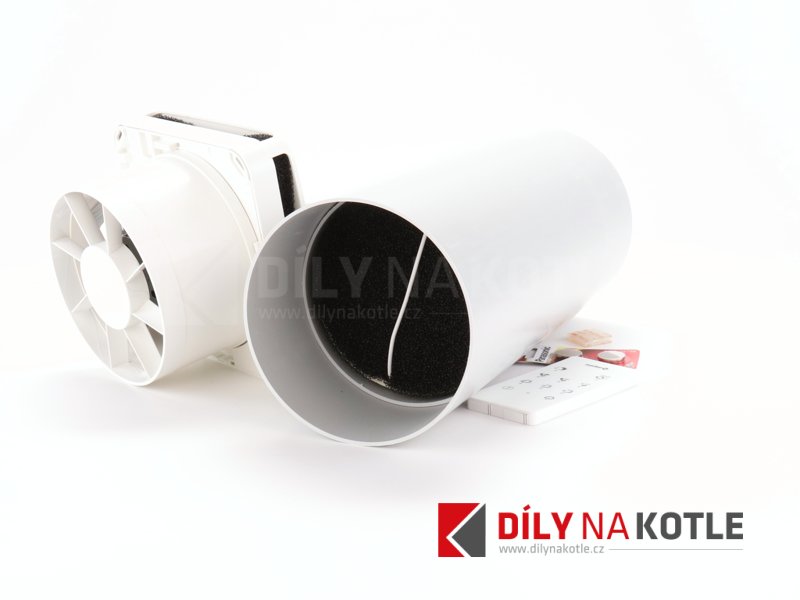

FANTINI COSMI RF RHINOCOMFORT 160 heat recovery unit

RHINOCOMFORT 160 RF heat recovery unit

High efficiency of the recuperation room unit is guaranteed, thanks to the ceramic heat exchanger, which heat from the supply
/ intake air flowing through the exchanger is transferred to the intake air. The Aspirvelo ventilation unit is equipped with a brushless DC motor, which, thanks to its opposite function, guarantees correct air exchanges in the room. Aspirvelo Air Ecocomfort is equipped with a G3 filter, easy access with the possibility of exchange. Aspirvelo Air Ecocomfort can be controlled by a control unit that allows the user to choose between automatic or extraction mode or only supply - exhaust air from the room. The control unit allows you to adjust the fan speed depending on the temperature difference between indoor and outdoor temperature. The control unit is suitable for controlling up to 4 fans simultaneously

CHARACTERISTICS:

• Body made of antistatic ABS plastic
• Class F engine
• Maximum ambient temperature 45°C
• Compact dimensions for easy installation
• The control unit controls up to 4 fans with a recuperation exchanger
• Telescopic body for different wall thicknesses
• External grille for outdoor use
• G3 filters Ø 160 and 100 mm
• Wall design
• Low noise level
• High efficiency ceramic exchanger> 90%
• Up to 4 units can be controlled by one thermostat
• Easy installation of the outdoor grille
• Telescopic adapter for different wall thicknesses

TECHNICAL DATA:

• Minimum speed: 12 m3 / hour.
• Maximum speed: 25 m3 / hour.
• Power supply: 230V - 50Hz
• Pipe diameter: 160 mm
