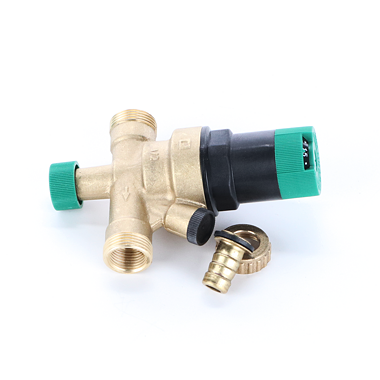

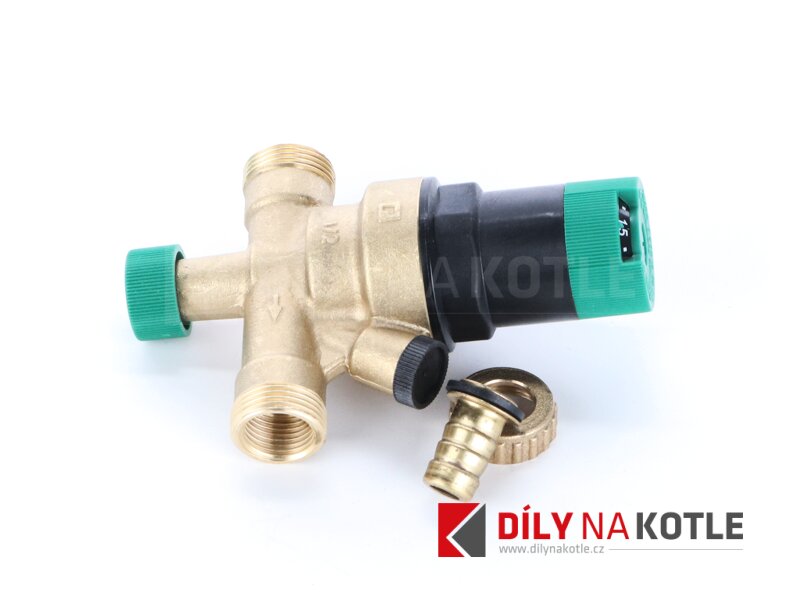

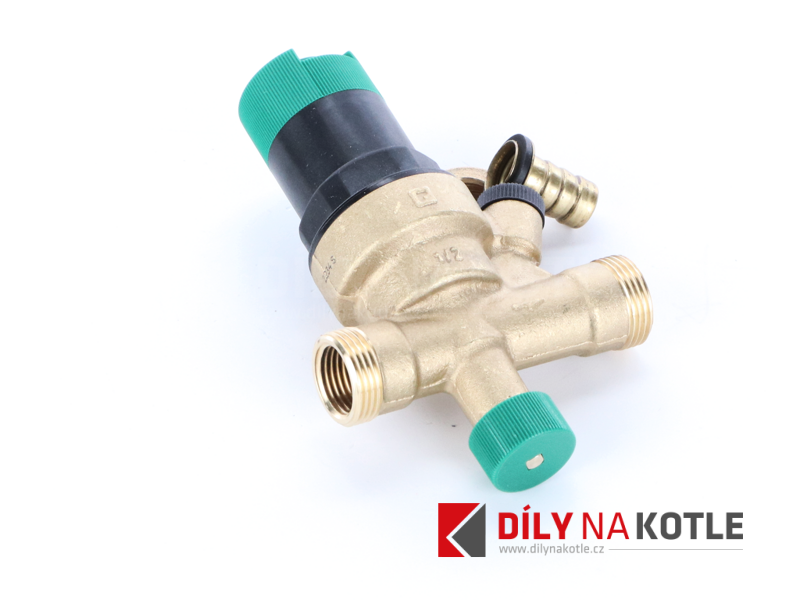

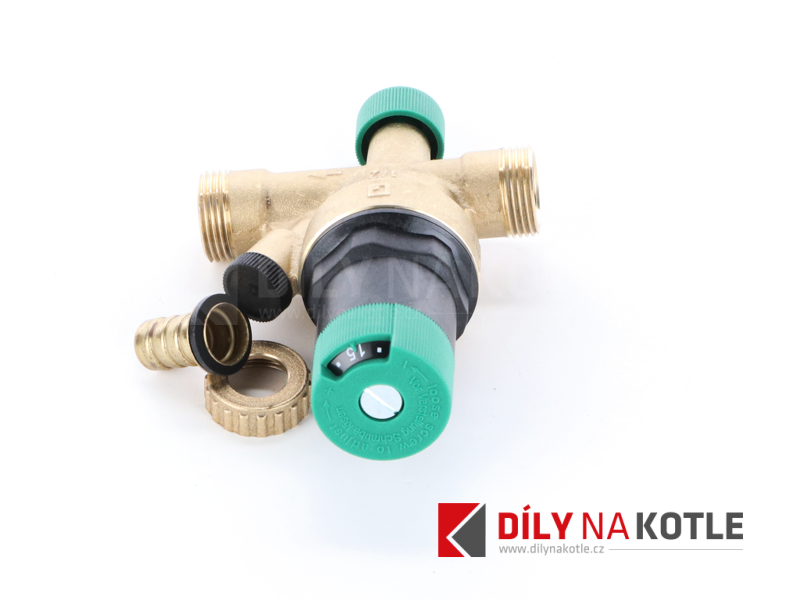

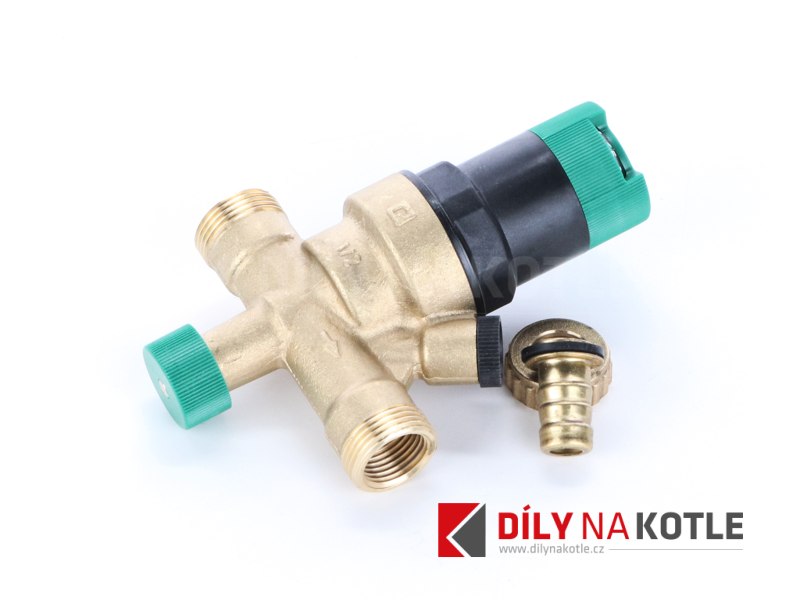

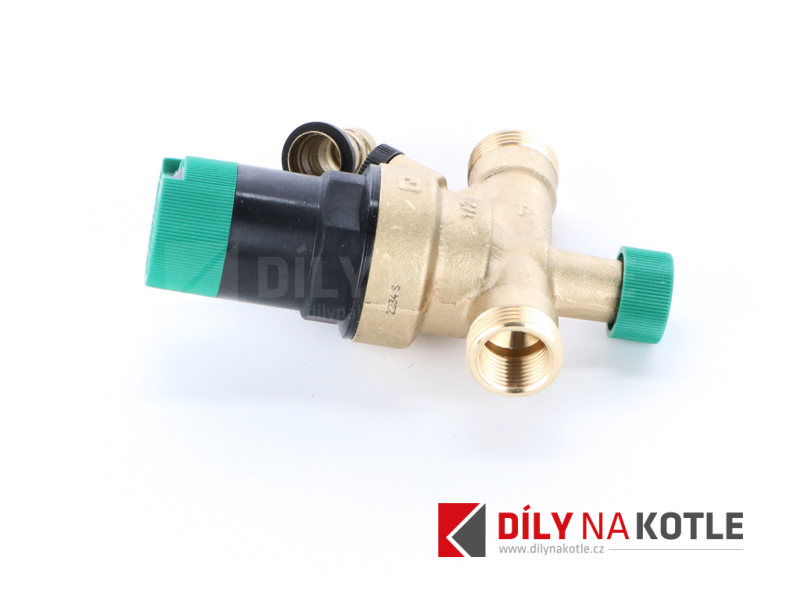

HONEYWELL filling valve VF06 - 1/2" hose

HONEYWELL filling valve VF06 - 1/2" hose

The VF 06 valve enables simple and safe filling or topping up of closed heating systems. The reducing, non-return and shut-off valves are contained in one body. In order to be able to perform an accurate pressure check in the system after it is filled, there is a socket on the valve body for connecting a manometer (can be ordered separately as an optional accessory).

For closed heating systems DIN 4751

• to the supply manifold of the heating system in combination with the supply pipe
• to the boiler using the inlet hose
• to the supply or directly to the boiler
• as a filling assembly for the initial safe filling of the system

TECHNICAL DATA:

• Product certification: Non-return valve approved according to DIN/DVGW
• materials Body made of brass, spring cover and valve insert made of plastic, membrane made of fiber-reinforced NBR, seal made of NBR
• medium: water
• maximum medium temperature: 70°C
• nominal pressure: PN16
• switching pressure setting range: 1 ... 3 bar
• connection: 1/2" external thread with hose outlet
• suitable for heating systems

Order code: VF06-1/2A
