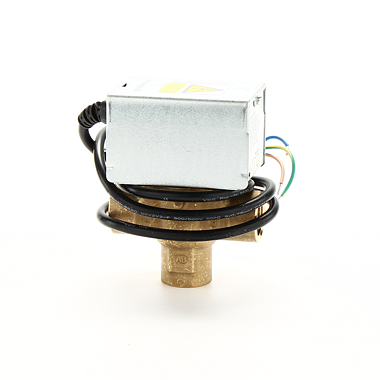

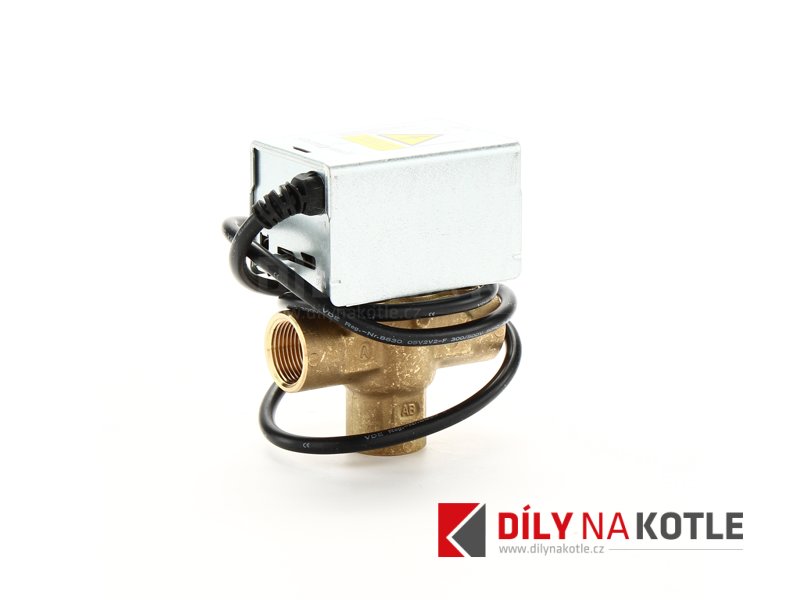

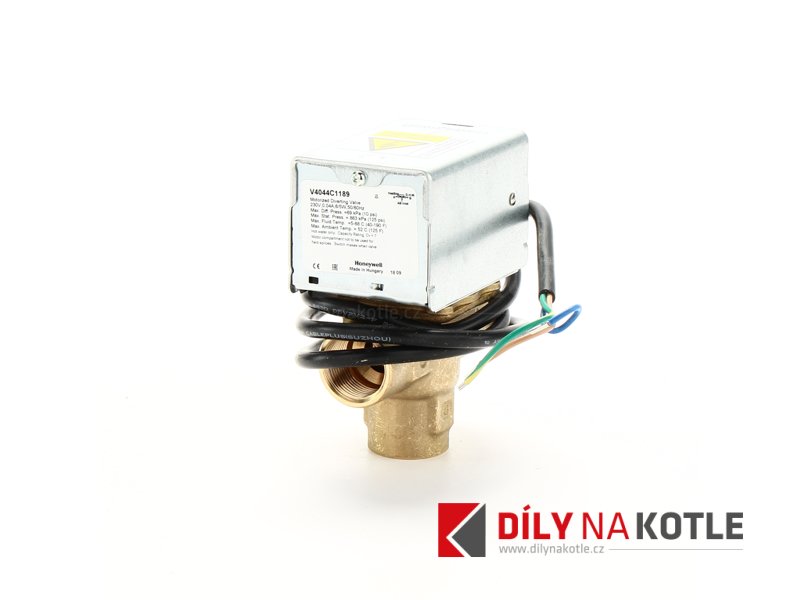

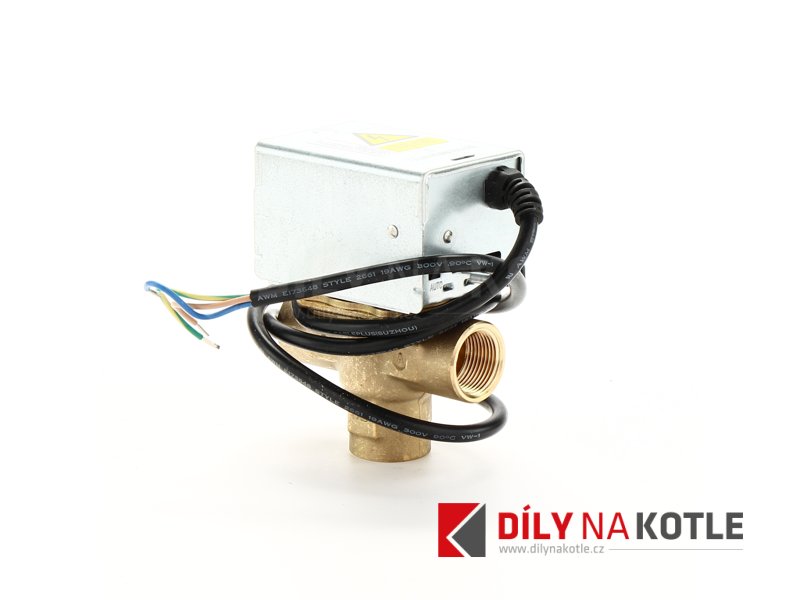

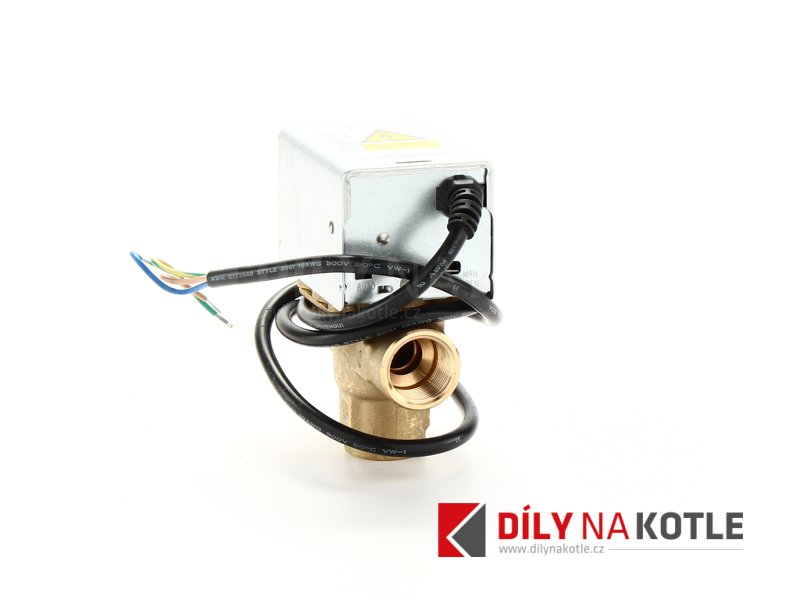

HONEYWELL three-way valve V4044C - 3/4"

HONEYWELL three-way valve V4044C - 3/4"

3-way switch Honeywell V4044C and are designed for use in common domestic and small industrial plants to control the flow direction of heating and cooling water.

Construction

• Switching valves V4044C and V4044F consist of:
• 3-way valve body with BSPP female thread
• Spherical switching element
• Drive with connecting cable
• V4044F1000 with SPDT limit switch
• V4044F1034 with SPST limit switch Materials used
• The valve body is made of brass
• The spindle is made of brass
• O - ring seals made of EPDM rubber
• Spherical switching element made of NBR rubber
• Cover and base plate of the drive made of galvanized

Specifications

• Operating temperature 5 ... 88°C (41 ... 190°F)
• Ambient temperature max. 50°C (122°F)
• Operating pressure max. 8.6 bar
• Flow direction AB → A or B
• Initial valve position closed holeA
• Supply voltage 220-240 V, 50 Hz
• Consumption 6 W / 0.042 A
• Switching current 2.2 A at 230 Vac, 50 Hz
• Opening time of opening valve: 30 seconds under closing: 12 seconds
• Connection 1m connecting cable, heat resistant
• Storage temperature -40… 65 ° C (-40… 149 ° F)
• Connection: female thread 3/4 "
