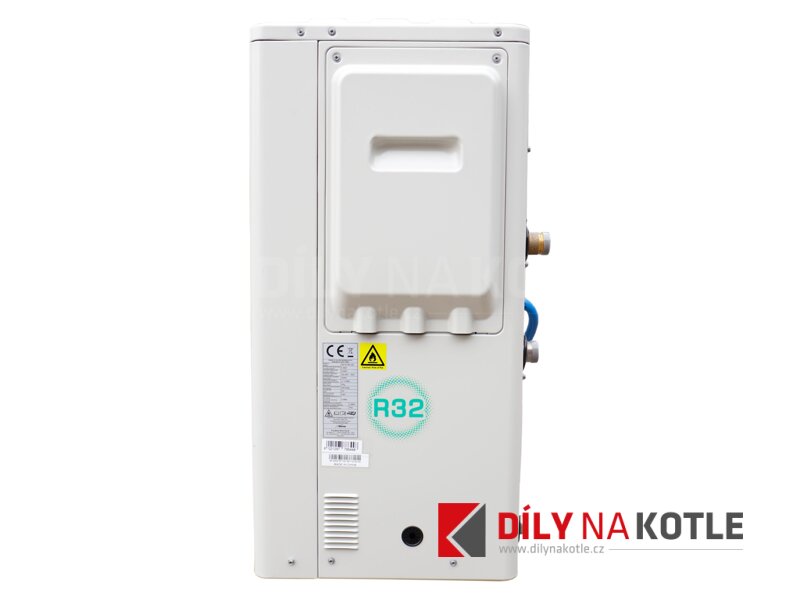

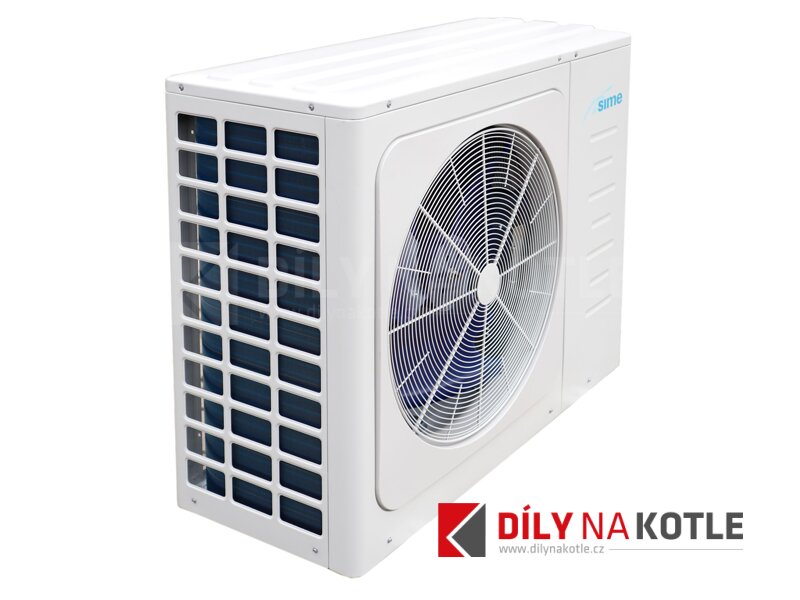

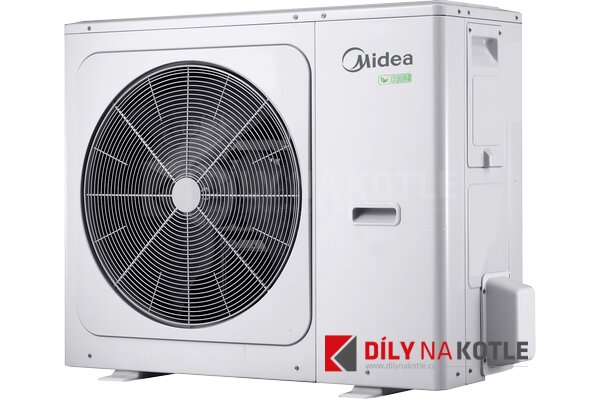

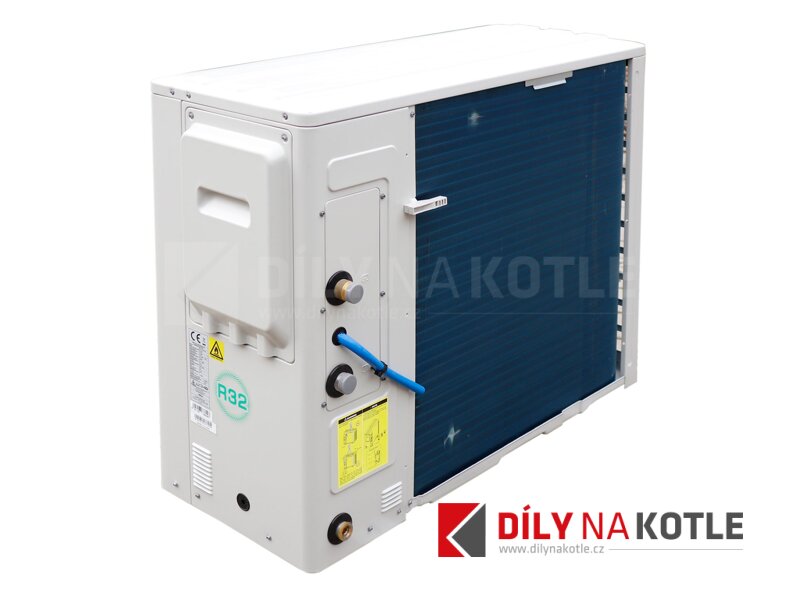

MIDEA SHP M PRO heat pump with inverter - 8 kW

MIDEA SHP M PRO heat pump with inverter - 8 kW

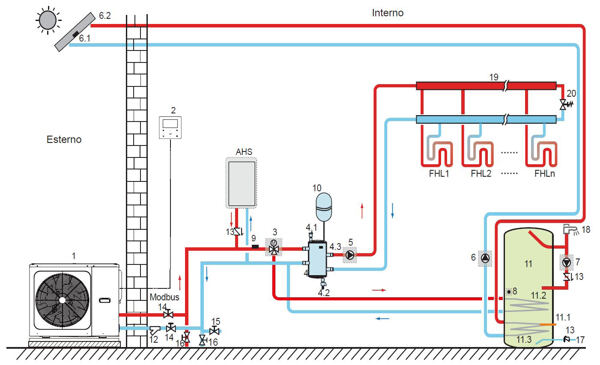

Heat pumps of the SHP M PRO series are intended for residential and commercial applications, are extremely versatile and ready for heat pump operation with hot water preparation for space heating and domestic hot water heating at temperatures up to 65 °C.

All units are equipped as standard with:

• With a "hermetically sealed" cooling circuit containing environmentally friendly R32 refrigerant gas with a low GWP
• Hermetic double rotary DC inverter compressor
• Air exchangers made of copper pipes and aluminum fins
• Stainless steel brazed plate heat exchanger

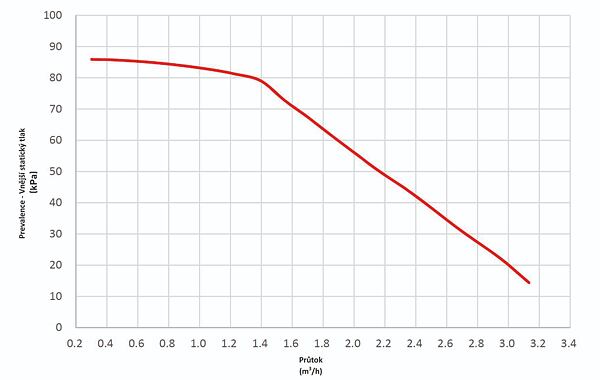

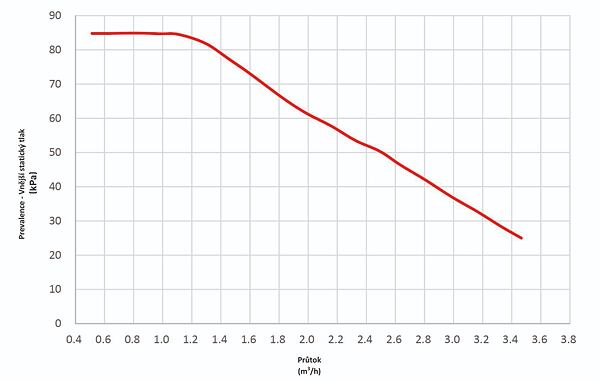

• Modulating circulation pump with highly efficient brushless motor
• Axial type fans with brushless EC motor
• Electronic expansion valve
• Cyclic reversing valve
• Electronic device management module
• Standard remote control with room thermostat function and Wi-Fi connection for control from a special application

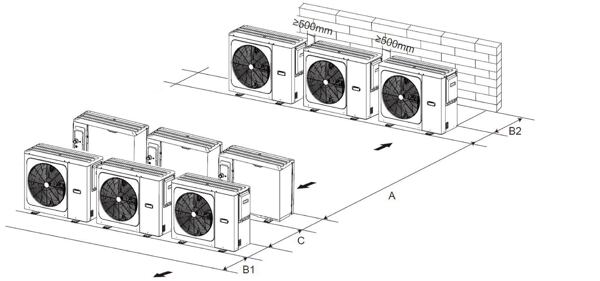

Heat pump dimensions: 1040 x 410 x 865 mm (length x width x height)

TECHNICAL PARAMETERS:

• Cooling capacity air 35 °C / water in the system 7 ° - Power - min/nom/max: 2.67 / 5.5 / 6.92 (*) kW EER 3.25
• Cooling capacity air 35 °C / water in the system 18 °C - Power - min/nom/max: 3.69 / 6.5 / 9.27 (*) kW EER 5.1
• Heating power air 7 °C / water in the system 35 °C - Power - min/nom/max: 2.98 / 6.5 / 8.47 (*) kW COP 5.3
• Heating power air 7 °C / water in the system 45 °C - Power - min/nom/max: 2.82 / 6.60 / 8.14 (*) kW COP 4.00
• Energy efficiency with heating water 35°C / 55°C: A+++ / A++
• Sound power level of outdoor unit Lwa: 60 dB(A)
• Refrigerant type : R32
• Amount of coolant: 1.25 kg
• Amount of refrigerant in tons of CO2 equivalent: 0.85

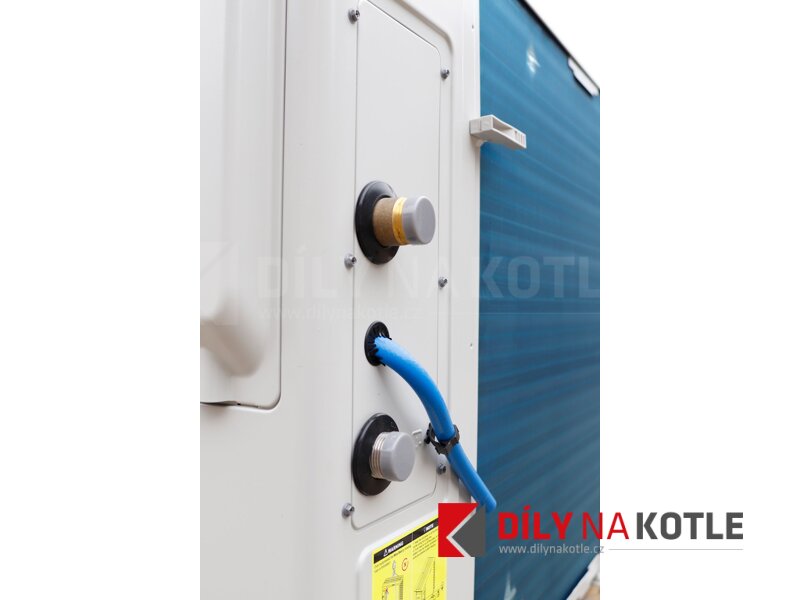

• Connecting the unit to the heating system: 1" external thread
• Power supply: 220-240 V~50 Hz
