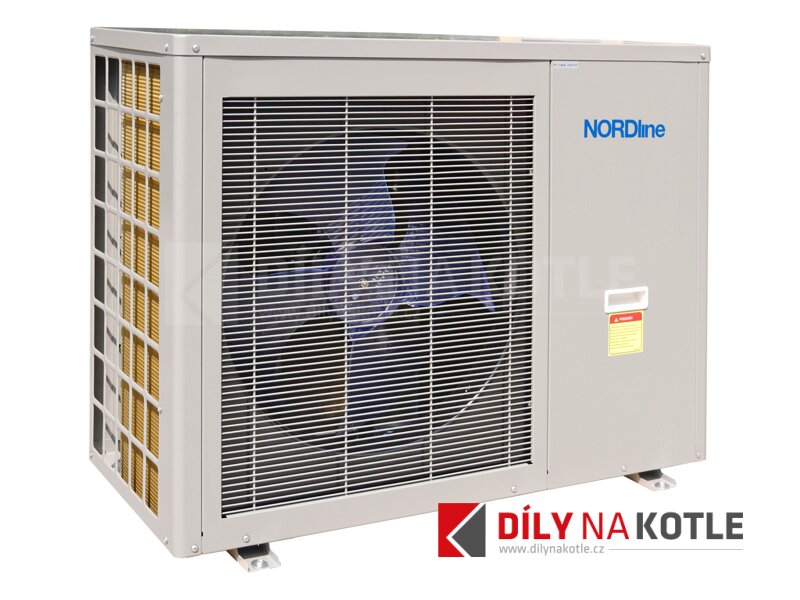

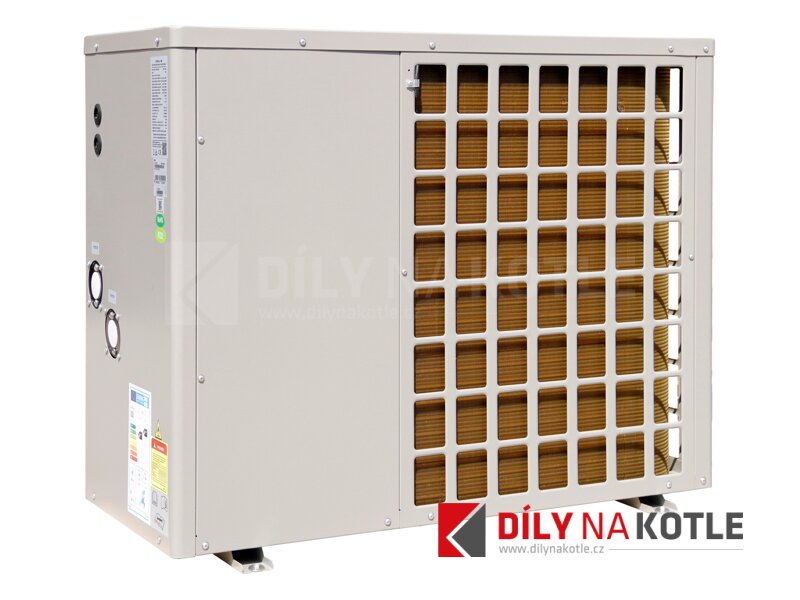

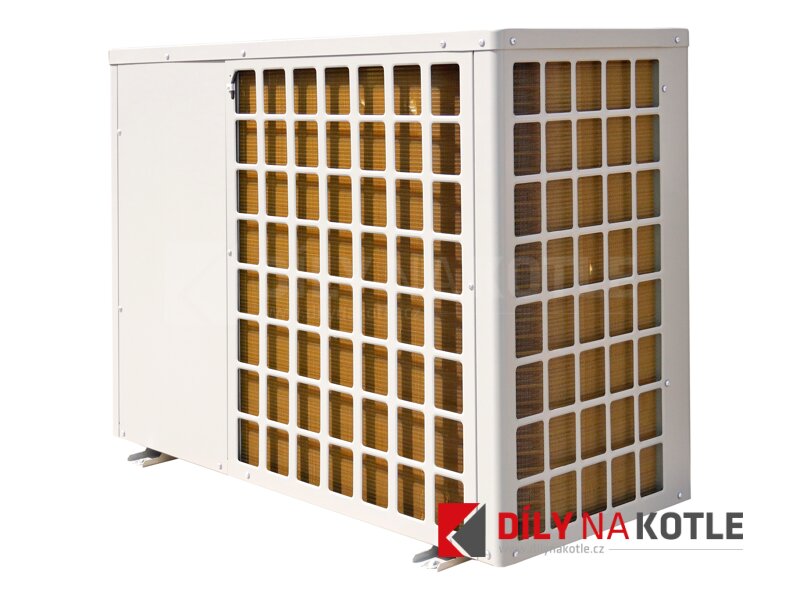

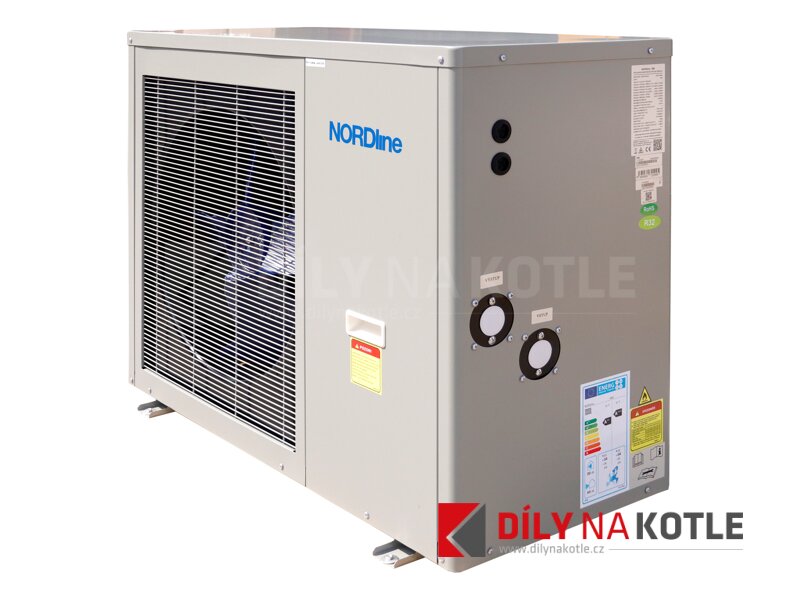

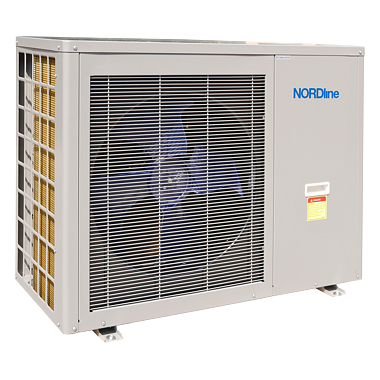

NORDLINE heat pump with inverter N6B

The air-water heat pump with inverter offers energy savings of up to 30% compared to ON-OFF heat pumps.

EVI technology makes it possible to achieve better performance and a higher heating factor (COP). The most important thing is the ability to achieve a high outlet temperature of the heating water even at low outside temperatures of -25 °C.

A heat pump is a simple ecological system that can use the low-potential temperature of the outdoor environment. With a heat pump, heating is not provided by electricity, but by the temperature of the outside air. Electricity is only used to drive the compressor motor and the pump fan. NORDline air-water heat pumps are compact units, where all the equipment intended for heating the heating water is located in an outdoor compact unit. Heat pumps are mainly intended for insulated buildings with vacuum windows. The heat pump is used to heat the heating water both for radiators and for underfloor heating. Thanks to the possibility of controlling two output temperatures, the unit can be used for heating at the same time as water heating.

Specifications:

• 5" color display with precise control to 0.5 °C
• accelerated heating/cooling time
• intelligent defrosting
• low noise level
• Panasonic branded compressor
• WI-FI control

Properties:

• heating/cooling mode
• precise control to 0.5°C
• accelerated heating/cooling time
• intelligent defrosting
• without freezing the bottom of the unit
• 5'' color display with precise control to 0.5 °C
• branded EVI compressor (manufactured by Panasonic) with separate coolant injection, which increases performance especially at minus values
• seasonal energy efficiency class ErP (35 °C) A++
• seasonal energy efficiency class ErP (55 °C) A+
• connecting pipe inlet/outlet 1
• water temperature up to 60 °C
• low noise level - comparable to light rain
• the product contains fluorinated greenhouse gases regulated by the Kyoto Protocol

Technical data:

• Heating power range (kW) 2.29 - 8.25
• Heating input range (kW) 0.63 - 1.81
• Cooling power range (kW) 1.98 - 6.1
• Cooling power range (kW) 0.7 - 2.2
• EVI rotary compressor type
• Panasonic compressor brand
• Frequency (Hz) 30 - 90
• Power supply (V/Hz) 220-240/1N - 50
• Maximum starting current (A) 13.0
• Refrigerant type / quantity (kg) R32/1.3 GWP / CO2 refrigerant equivalent (t) 675/0.878
• Connection pipe inlet / outlet (“) 1"
• Sound pressure level at 3 m (dB) 44.5
• External dimensions W x D x H (mm) 1052 x 490 x 805 mm
• Weight (kg) 90

- - - - - - - - - - - - - - - - - - - - - - - - - - -

Note: According to EU Regulation No. 517/2014 and Act No. 89/2017, the sale of air conditioners and heat pumps to end customers is not possible without professional installation by a certified person or company that will perform the installation.
We require proof that the heat pump or air conditioner was installed by a certified person or company of your choice. With the invoice, we will send you a form to fill out, which you can give to a certified person or company for confirmation, or you can send a copy of the invoice, which shows the registration of the MoE.
