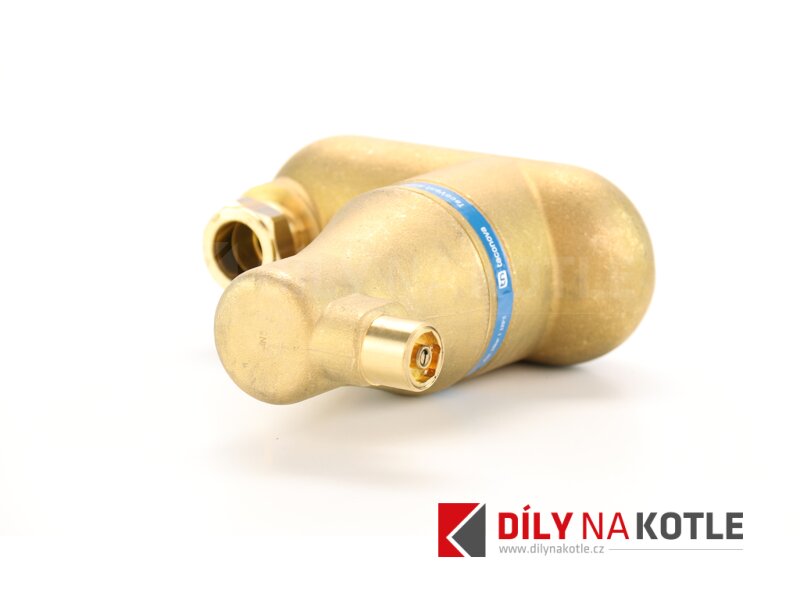

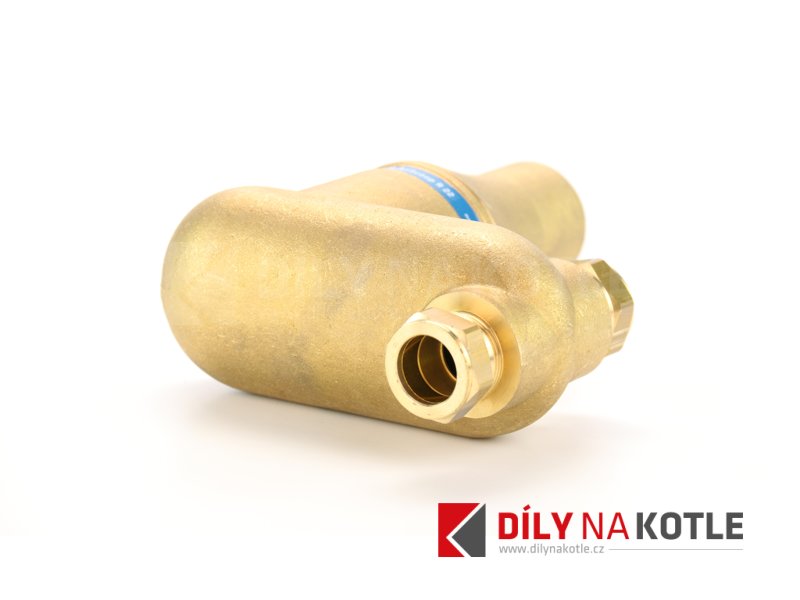

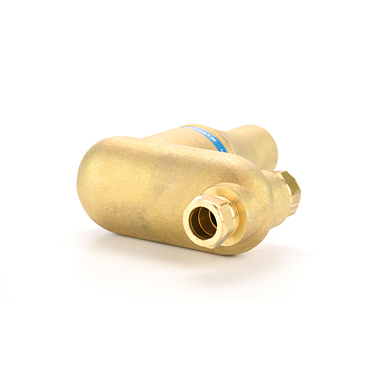

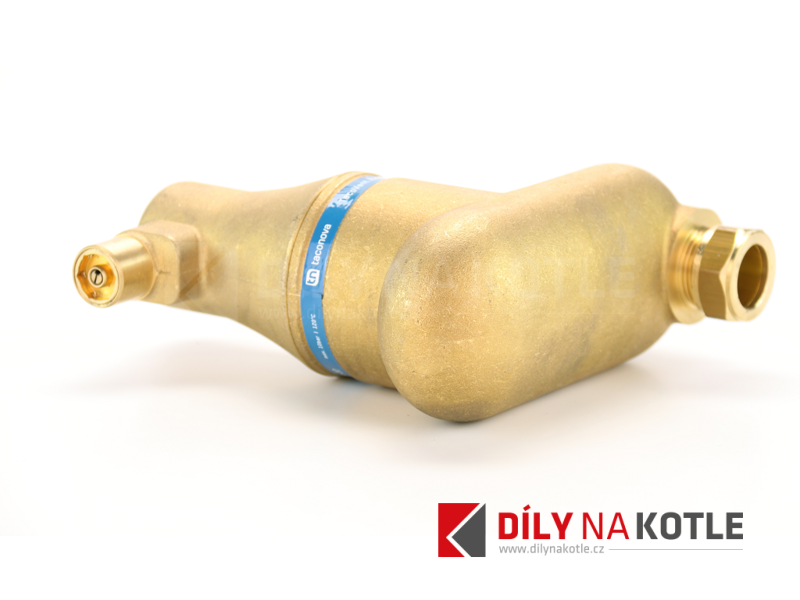

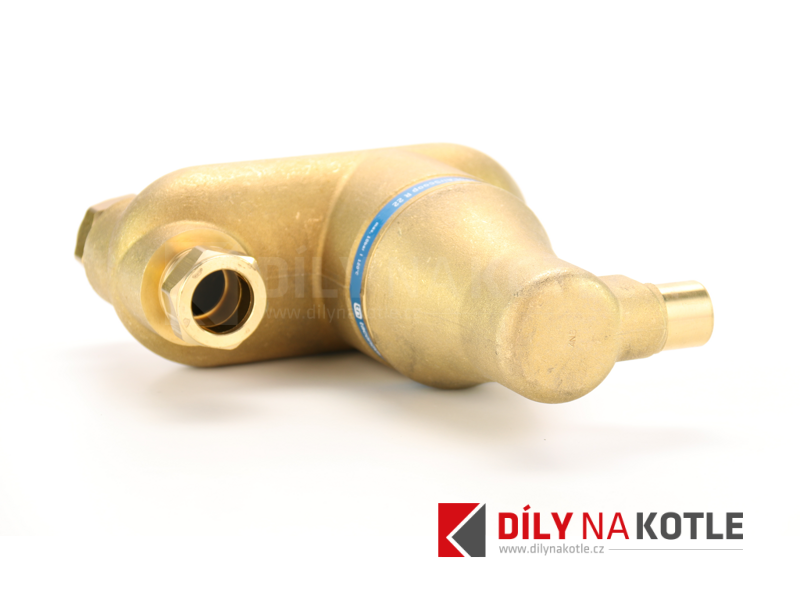

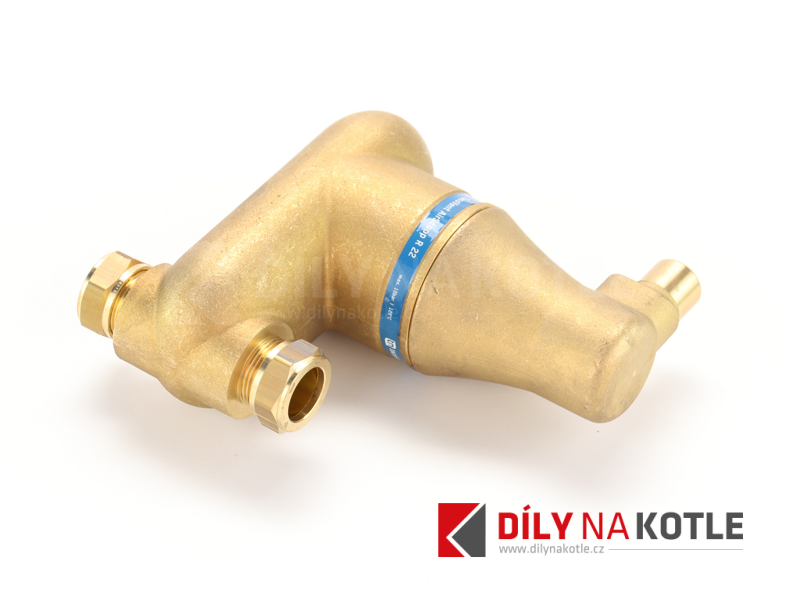

TACONOVA air separator vertical 22 mm

TACONOVA air separator vertical 22 mm

TacoVent AirScoop R is installed in heating and solar systems. It affects the permanent separation of air and deaeration in these devices. The installation of an air separator prevents disturbing noises, reduced heat generation on the heating surfaces and malfunctions on the built-in circulation pumps by running dry. Properly vented and heating and solar systems are not subject to corrosion due to the low oxygen content in the water, which increases the life of the system.

INSTALLATION:

TacoVent AirScoop R is adapted to the mounting position. The RV version is designed for vertical (vertical), the RH version for horizontal (horizontal) mounting. In both versions, the marked flow direction must be observed.

FUNCTION:

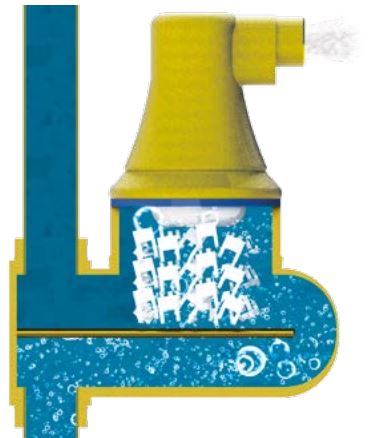

Microbubbles dissolved in water adhere to the contact surfaces of the built-in I-rings and combine into larger bubbles. Larger bubbles are separated and eliminated by means of a float deaerator. The I-rings are integrated in the TacoVent AirScoop R so that the entire flow comes into contact with the surface of the I-rings. This principle leads to permanent and permanent deaeration of water equipment and thus to economical and safe operation.

INTENDED FOR:

For installations in heating and solar heating systems: ■ residential houses, housing estates, multi-family houses ■ homes and hospitals ■ administrative buildings and service buildings ■ hotels and restaurants ■ schools and gyms / sports facilities ■ commercial and industrial buildings

TECHNICAL DATA:

• Material: brass and plastic
• Flow water: heating water
• DN: 20
• Maximum temperature: 120°C
• Connection: 22 mm
• Kv - 15.3
• Water content: 0.40 l
