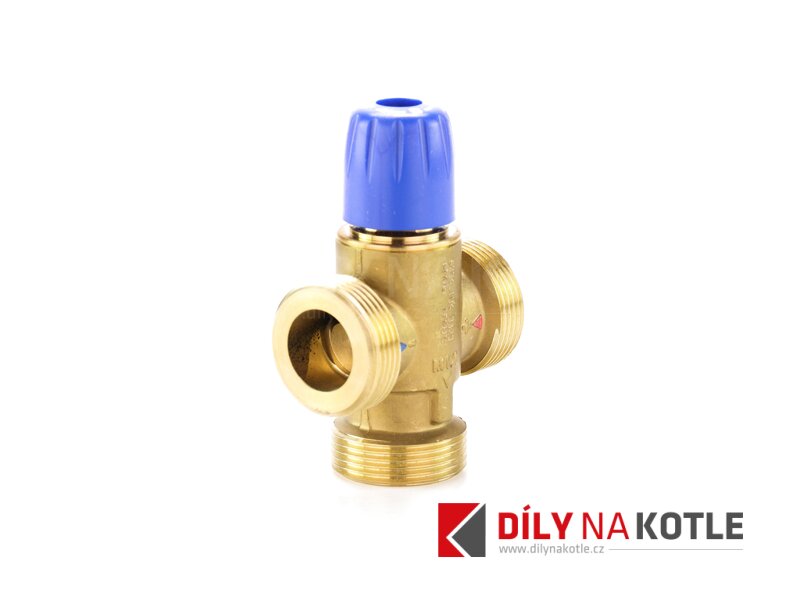

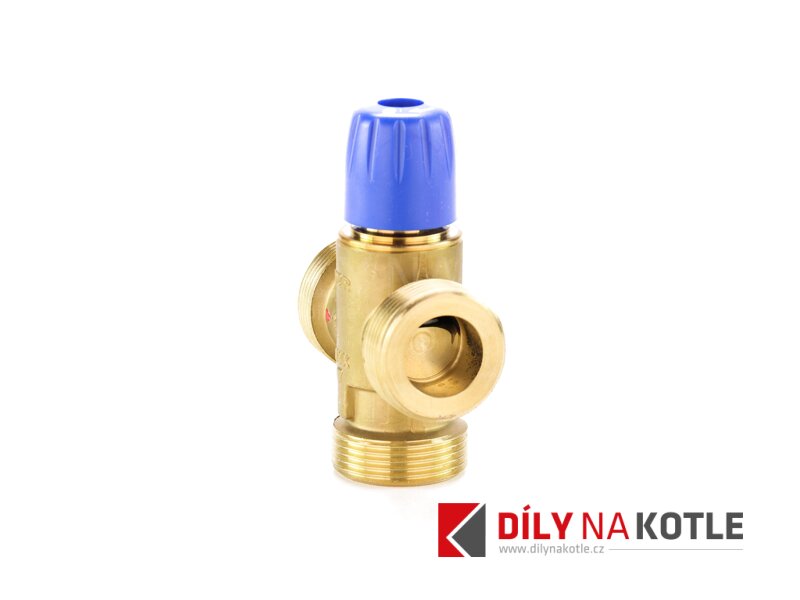

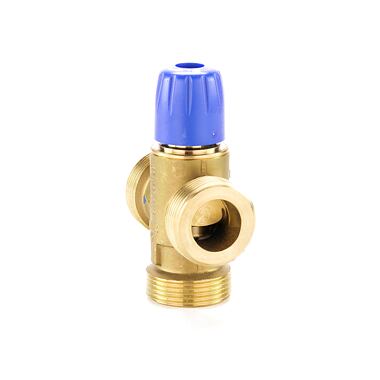

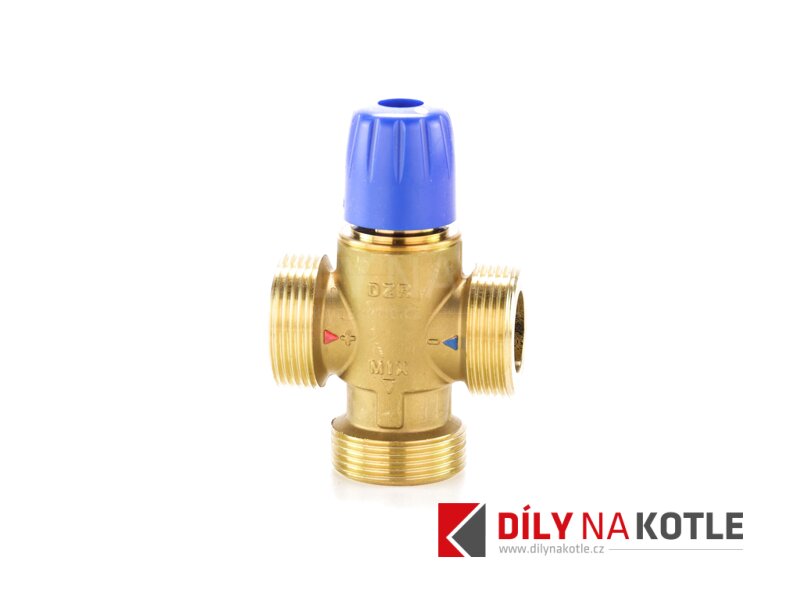

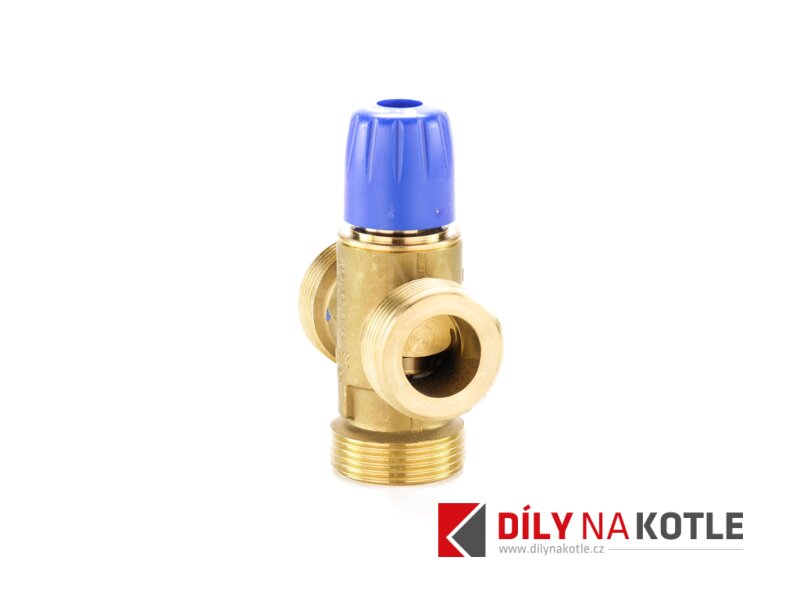

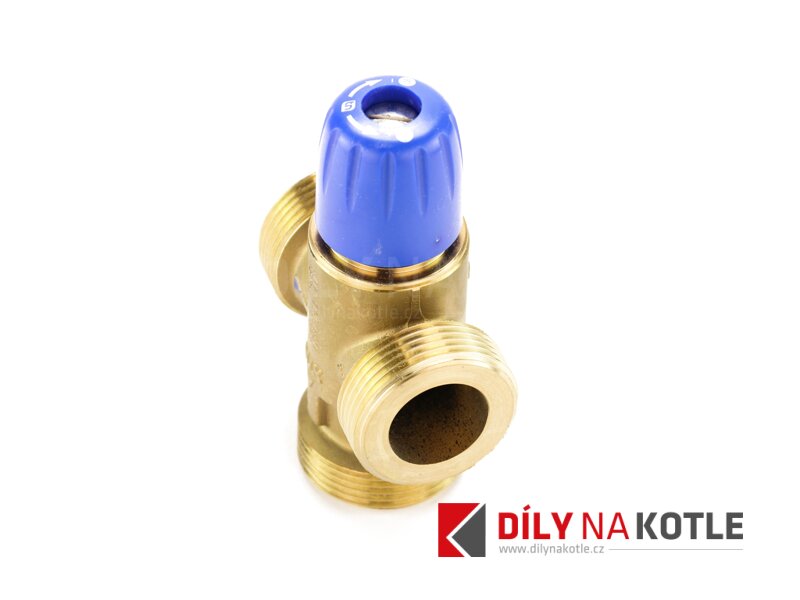

TACONOVA mixing valve 11/4" NOVAMIX - 30-70°C

TACONOVA mixing valve 11/4" NOVAMIX - 30-70°C

NovaMix Standard automatic thermostatic mixing valves as a central mixing element ensure a constant temperature of the mixed medium at the point of collection. NovaMix Standard valves can be used mainly for sanitary installations as a control element to reduce the temperature of domestic water from storage heaters. Other possible uses are in areas where a constant mixed water temperature is required. E.g. as a mixing element with constant temperature for surface heating and when charging storage tanks for solid fuel boilers.

INSTALLATION:

Any.

FUNCTION:

Standard design: The thermostatic element and return spring maintain a constant temperature of the mix at the point of consumption. Thanks to the design of the mixer, the thermostat hub is easily replaceable in the event of a reduction in performance due to normal wear and tear. NovaMix Standard 70/40 FS (Fail Safe): In the event of a cold water failure, the hot water supply is automatically interrupted and hermetically sealed. INTENDED FOR BUILDINGS For pipe installations in areas with drinking water and heating: ■ apartment buildings, housing estates with family houses, multi-family houses ■ homes and hospitals ■ administrative buildings and service buildings ■ hotels and restaurants / commercial kitchens ■

INTENDED FOR:

For pipe installations in areas with drinking water and heating: ■ apartment buildings, housing estates with multi-family houses, multi-family houses ■ homes and hospitals ■ administrative buildings and service buildings ■ hotels and restaurants / commercial kitchens ■ schools and gyms / sports facilities ■ commercial and industrial buildings

TECHNICAL DATA:

• Operating pressure: 10 bar
• Maximum operating temperature: 90°C
• Noise class: 2
• Mounting position: any
• Material: housing and inner parts: brass EZB
• Case with anti-scale coating
• Connection: 1"
• Kvs - 1.9
• DN: 20
• Regulation range: 30 - 70°C
