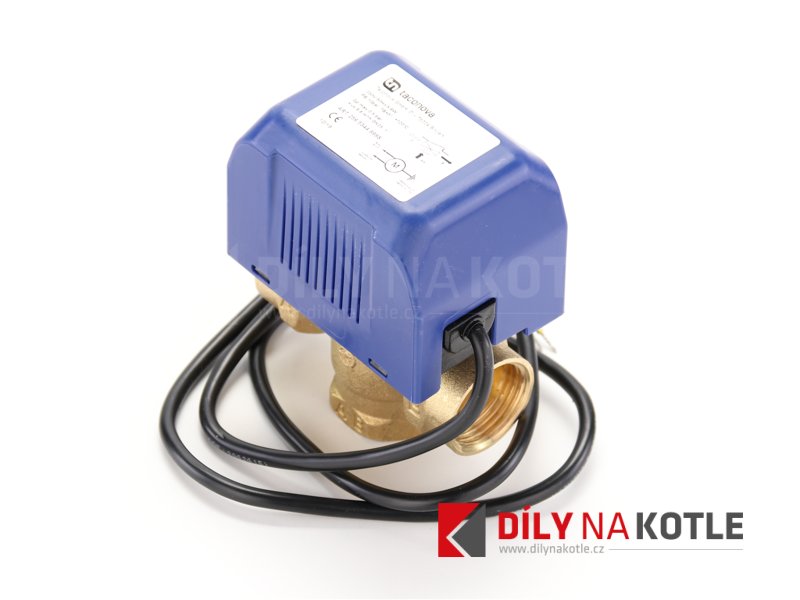

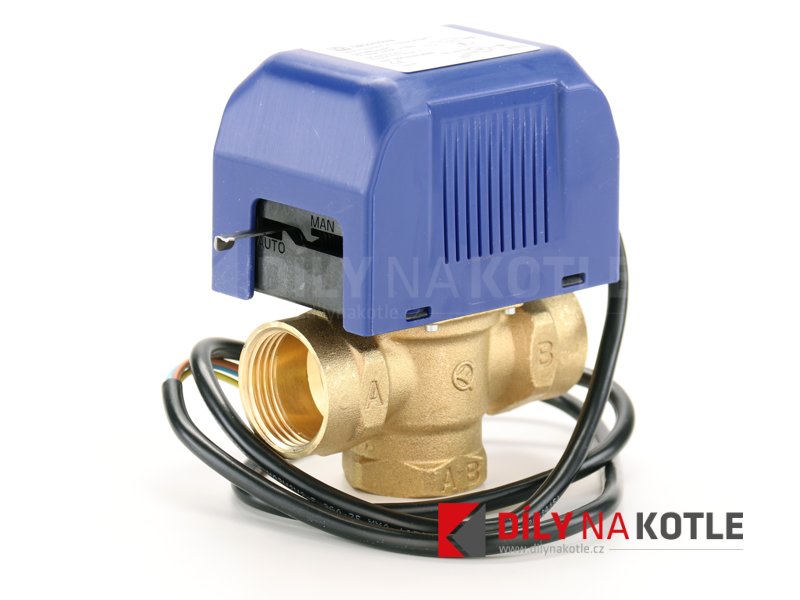

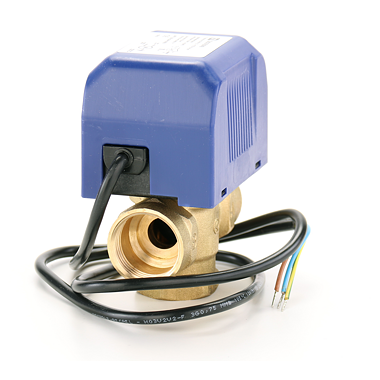

TACONOVA valve 3-way zone 1"

TACONOVA valve 3-way zone 1"

Zone valve with electromotive drive and return spring for circuit control in heating, cooling and air conditioning systems. Thus, individual zones or devices in the system are or are not supplied with medium depending on the valve throughput setting (open / closed for 2-way and switching in 3-way version). Lever for manual drive. Obvious valve position. Spindle seal made of two standard O-rings. The spectrum of use of different liquids (water, glycol mixtures).

INSTALLATION:

Installation is arbitrary. It is only necessary to observe the flow direction of the medium.

FUNCTION:

The transition of the valve body from the original to the end position is initiated by a 1-pole contact (eg thermostat, switch, etc.). In the de-energized mode, the spring returns the valve to the original position. The NovaZone Valve cannot be stopped in the intermediate position.

INTENDED FOR:

For the installation of pipes in cooling and drinking water: ■ housing construction, housing estates with multi-family houses, multi-family houses ■ homes and hospitals ■ administrative buildings and service buildings ■ hotels and restaurants / commercial kitchens ■ schools and gyms / sports facilities ■ commercial and industrial buildings ■ equipment with partial use as barracks, camps

TECHNICAL DATA:

• Operating temperature: 120°C
• Maximum operating pressure: 10 bar
• Material: brass and EPDM
• Cable length: 1 m
• Power consumption: 6 W
• Opening interval: 12 s
• Voltage: 230V
• DN: 25
• Connection: 1"
• Kvs - 8800 l / h
• p max: 0.5 bar
• 3-way zone valve with electromotive drive and return spring, standard version for medium temperature 5 - 120˚C
