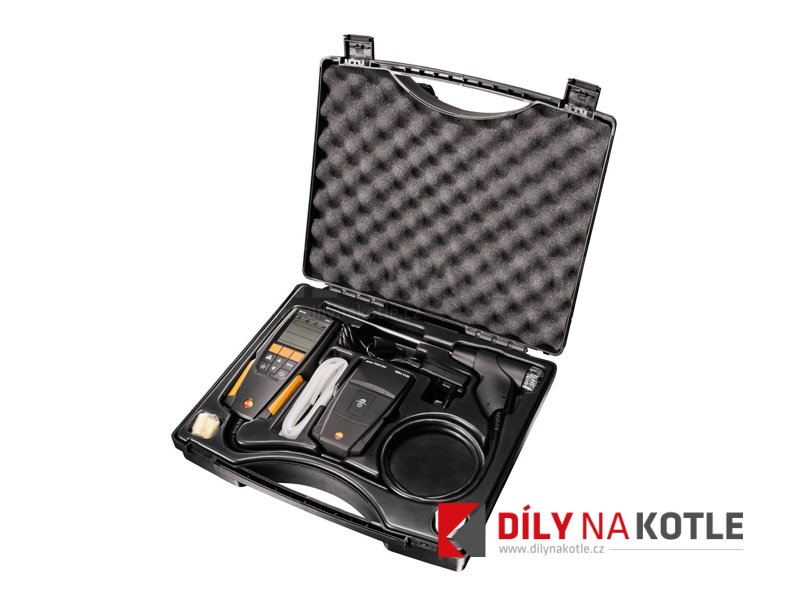

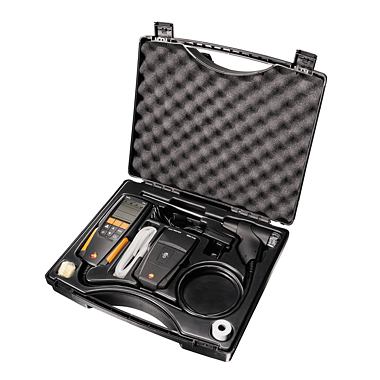

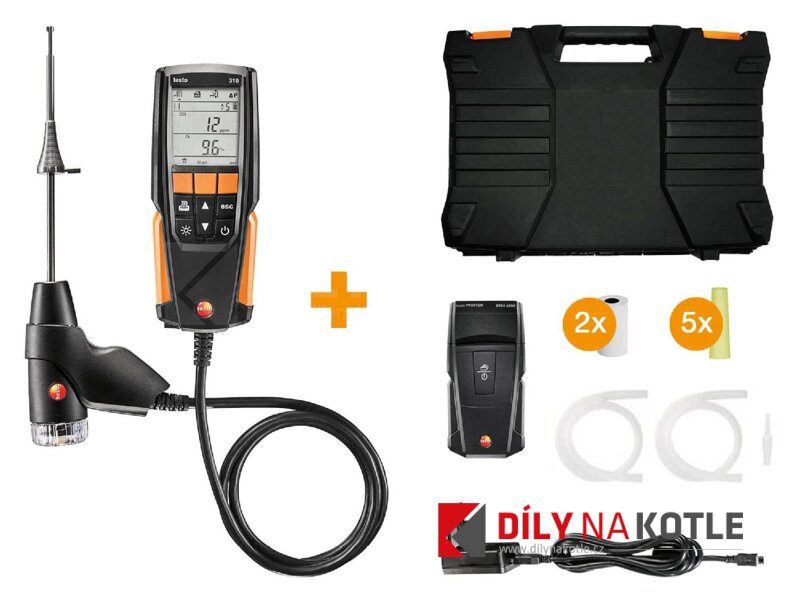

TESTO flue gas analyzer 310 with printer

TESTO flue gas analyzer 310 with printer

The testo 310 is equipped with two sensors for O2 and CO and a sampling probe with integrated temperature sensor. The sensors measure the exact content of oxygen and carbon monoxide as well as the temperature of the flue gases and the ambient air. From these parameters, all important measured quantities such as CO2 value, efficiency and chimney loss are automatically calculated. The device convinces with its simple handling and safe navigation in the menu. From the well-lit display, you can read the measured values with confidence and comfort even in low light conditions. Fuels are not only stored as numbers, but are always described. Symbols for an overview of the various measurement menus always remain at the top of the clear display. The dirt-resistant display and keyboard are clearly structured. Operation is absolutely simple - even if you have only one hand free.

• Sensor reset (30 s)
• Integrated condensate sump
• Robust measuring device suitable for daily use

Technical data:

Type K

• Measuring range: -20 to + 100°C
• Accuracy: + -1°C
• Resolution: 0.1°C

Type J

• Measuring range: 0 to + 400°C
• Accuracy: + -1°C
• Resolution: 0.1°C

O2 measurement

• Measuring range: 0 to 21 vol.%
• Accuracy: 0.2 vol.%
• Resolution: 0.1 vol.%
• Response time: 30 s

Chimney draft measurement

• Measuring range: -20 to +20 hPa
• Accuracy: 1.5% of mv (Remaining range)
• Resolution: 0.01 hPa

Flue gas losses

• Measuring range: 0 to 99.0%
• Resolution: 0.1%

CO2 measurement

• Measuring range: 0 to CO2 max
• Accuracy: 0.2 vol.%
• Resolution: 0.1 vol.%

Pressure measurement

• Measuring range: -40 to +40 hPa
• Accuracy: 0.5 hPa
• Resolution: 0.1 hPa

CO measurement (without H2 compensation)

• Measuring range: 0 to 4000 ppm
• Accuracy: + - 20 ppm
• Resolution: 1 ppm
• Response time: 60 s

Measurement of CO environment:

• Measuring range: 0 to 4000 ppm
• Resolution: 1 ppm
• Response time: 60 s

Main technical data

• Dimensions: 201 x 83 x 44 mm
• Operating temperature: -5°C to + 50°C
• Display functions: 2 - line display with backlight
• Weight: 700 g with probe
