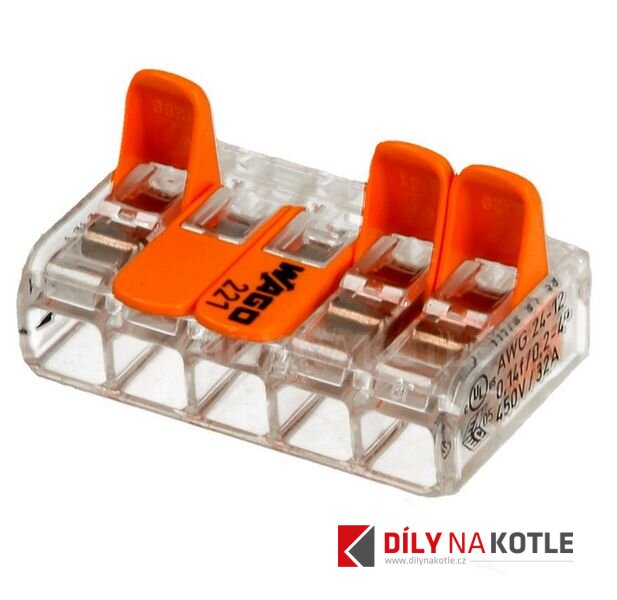

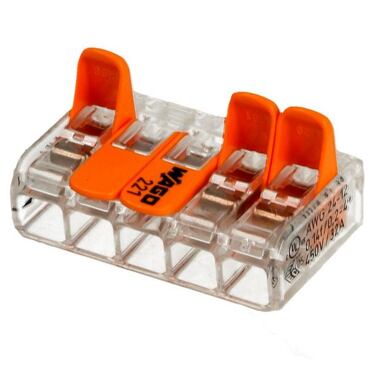

WAGO terminal series 221-415, 5 poles, orange

WAGO terminal series 221-415, 5 poles, orange

• The terminals of the 221 series are 40% smaller than the previous models of the 222 series. They can be installed quickly and without problems, even under cramped conditions and in installation boxes.
• The 221 series terminal cover made of transparent plastic allows easy control of the location of the conductor. You will immediately see if the cable is fully inserted and connected correctly. It is also possible to check the length of stripping. Easy routing of the wire to the clamping point.
• There are two holes for comfortable and safe measurement with standard test probes. The clamps are based on CAGE CLAMP® technology, which avoids the use of tools, the clamping points are opened and closed using the control lever.
• The 221 series terminals can be used for all common types of conductors. For conductor cross sections from 0.14 to 4 mm? (cable) or 0.2 to 4 mm2. Thanks to the rated current from 32 A and the rated voltage from 450 V, the 221 series is suitable for various applications.
• TECHNICAL PARAMETERS:
• Number of poles: 5
• Temperature range: 0 - 105 ° C
• Rated current: 32 A
• Rated voltage: 450V
• Dimensions: 18.6x29.9 mm
• For wires from: 0.14 - 4mm2
• Package contents: 1 piece of clamp
• Suitable for connecting luminaires, blind motors, intercoms, door and gate controls. In industry, they are suitable for connection
